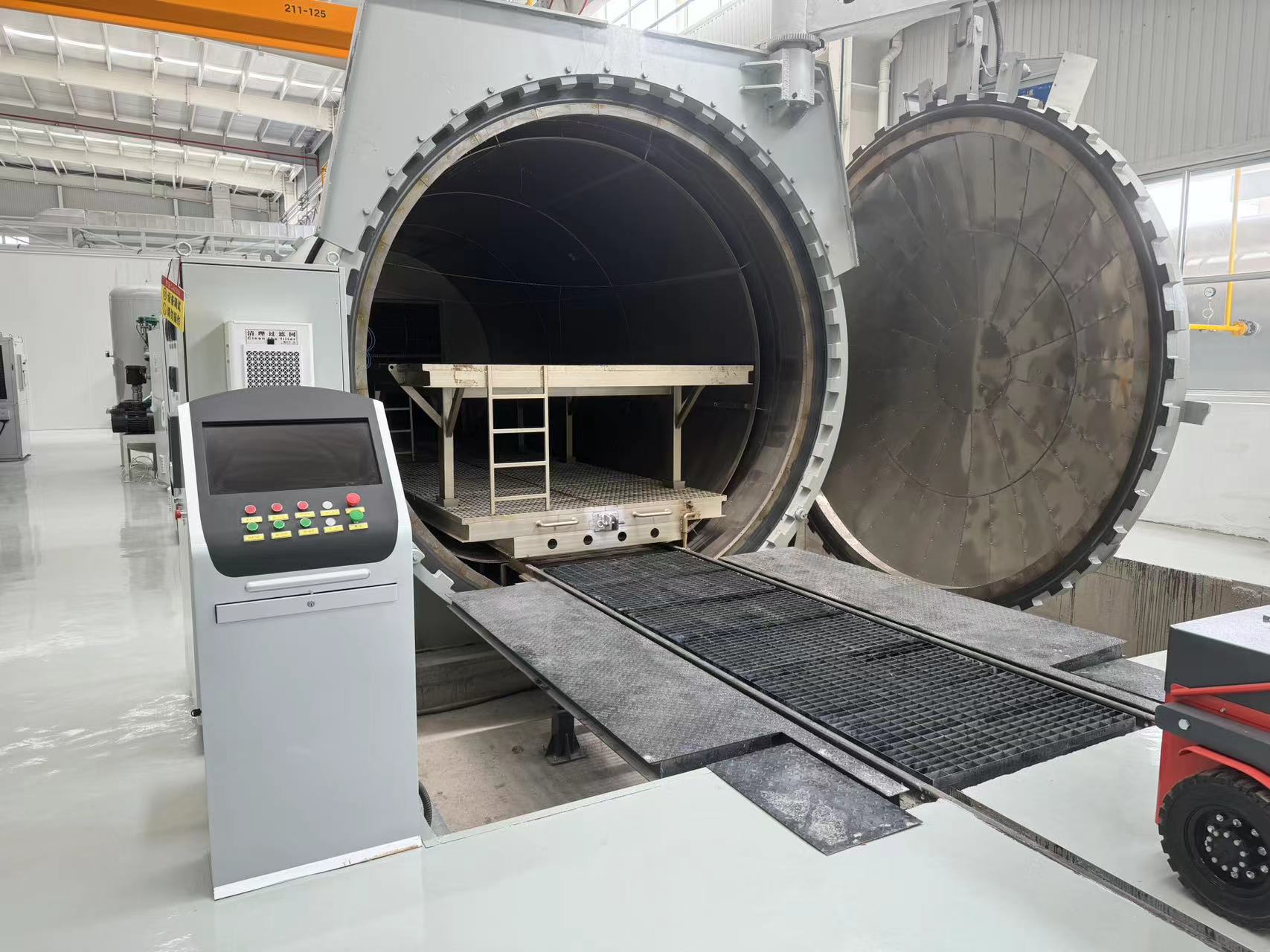

The autoclave for composite materials is primarily used for curing and forming various resin-based composite components and metal-bonded components. The materials cured and formed using an autoclave include carbon fiber prepreg, glass fiber prepreg, Kevlar fiber prepreg, and honeycomb sandwich structures. This equipment enables heating and pressurization for uniform forming while applying a vacuum to composite material products.

Application Fields
- Aerospace Industry: Used in the manufacturing of aircraft wings, fuselages, rocket casings, satellite components, etc.
- Defense Industry: Applied to reinforced protective armor, weaponry, helmets, bulletproof glass, bulletproof vests, etc.
- Automotive Industry: Used in the production of car bodies, load-bearing structures, drive shafts, engine frames, and internal components.
- Rail Transit Industry: Applied to high-speed train composite materials and metro doors and windows.
- Sports Industry: Used in the manufacturing of composite material rackets, pole vault poles, golf clubs, racing boats, etc.

We offer high-temperature and high-pressure autoclaves, protective armor autoclaves, large aerospace autoclaves, laboratory high-temperature and high-pressure autoclaves, Wing Loong autoclaves, thermoplastic autoclaves, automotive lightweight autoclaves, robotic arm autoclaves, drone autoclaves, and more.

Specifications (mm)	Effective Diameter D = 400 ~ 7000
	Effective Length L = 500 ~ 30000
Operating Temperature (°C)	Temperature = 100 ~ 500
Operating Pressure (MPa)	P = 0.6 ~ 5.0
Vacuum Circuit (No.)	2 ~ 60 (pumping and separation)
Vacuum Degree (KPa·A)	≤2
Temperature Control Accuracy (°C)	±1.0
Heating and Cooling Rate	0.5 ~ 10°C/min (continuous adjustable)
Temperature Uniformity (°C)	±1.0
Pressure Control Accuracy (MPa)	±0.005
Pressure Rising and Falling Speed	0.01 ~ 0.5 MPa/min
